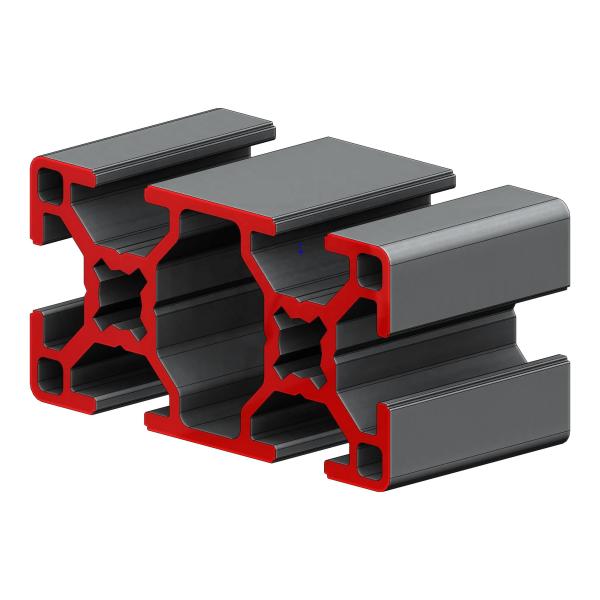

Modern Design Standard Aluminum Extrusion Profiles For Assembly Line

Name: Modern Design Standard Aluminum Extrusion Profiles For Assembly Line
Brand: Huilv
Price: 1 USD

Place of Origin : China

Model Number : AHHLKEN0005

Brand Name : Huilv

Supply Ability : 50000Tons/Year

Packaging Details : Standard packing: *Transparent protection film, or cotton paper to protect each piece. *Transparent PE film outside each bundle/or Kraft paper. *Small profile to be inserted into bigger ones to save space EP paper inside for each piece then shrink pape

MOQ : 300Kg

Certification : ISO9001:2008/ ISO14001:2004/ OHSAS 18001:1999/PPG/TUV/CE

Delivery Time : Within 5-15 working days

Payment Terms : D/A, L/C, D/P, T/T, Western Union, MoneyGram

Grade : 6000 Series

Temper : T3-T8

Application : ASSEMBLY LINE

Shape : T - Profile

Alloy Or Not : Is Alloy

Lead Time : 15-20 Working Days

MOQ : 1TON

Port : WUHU

Contact Now

Aluminum Profile For Assembly Line

Product Name	Aluminium Extrusion Higher Quality Aluminium Profile
Material Grade	6063-T5
Temper	T3-T8
Surface Treatment	Mill finish, anodizing, powder coating, electrophoresis,wooden color etc.
Color	Brown, red, white, champagne or Customized
Normal Anodizing Thickness	8-12 micro
Normal Powder Coated Thickness	60-100 micro
Shape	Square, round, hollow, triangle or Customized
Length	The Standard length of export is 5.8m
Deep Processing	Cutting, drilling, punching, bending etc.
2D&3D Design	1. Designers in design and development department 2. Auto CAD, 3D, AI, SLD, PRT. IGS, PDF, JPEG etc.
Engineering& Tooling	1. 8 Engineers in Mold Shop. 2. Use high tonnage extruder, Wire EDM, CNC, Drilling machines etc.
Quality Control	1. Inspection at Site. 2. Inspection Before Shipping. 3. Testing Machine.

Mechanical Properties

Alloy	Temper	Thickness	T.S.	Y.S	ELOG.	Hardness
Alloy	Temper	Thickness	σb (MPa)	σ0.2 (MPa)	δ%	HV	HW
6005	T5	≥ 0.8	≥260	≥240	≥10	≥85	≥15
6063	T4	≥ 0.8	≥130	≥65	≥12	-	-
	T5	≥ 0.8	≥160	≥110	≥8	≥58	≥8
	T6	≥ 0.8	≥205	≥180	≥8	≥65	≥10
6061	T4	≥ 0.8	≥180	≥110	≥16	≥65	≥10
6061	T6	≥ 0.8	≥265	≥245	≥8	≥85	≥15.5

Standard packing

Transparent protection film, or cotton paper to protect each piece.
Transparent PE film outside each bundle/ or Kraft paper.
Small profile to be inserted into bigger ones to save space
EP paper inside for each piece then shrink paper,or carton paper then pallet,or wooden carton ect.
